Programming information.



Download Programming.txt.

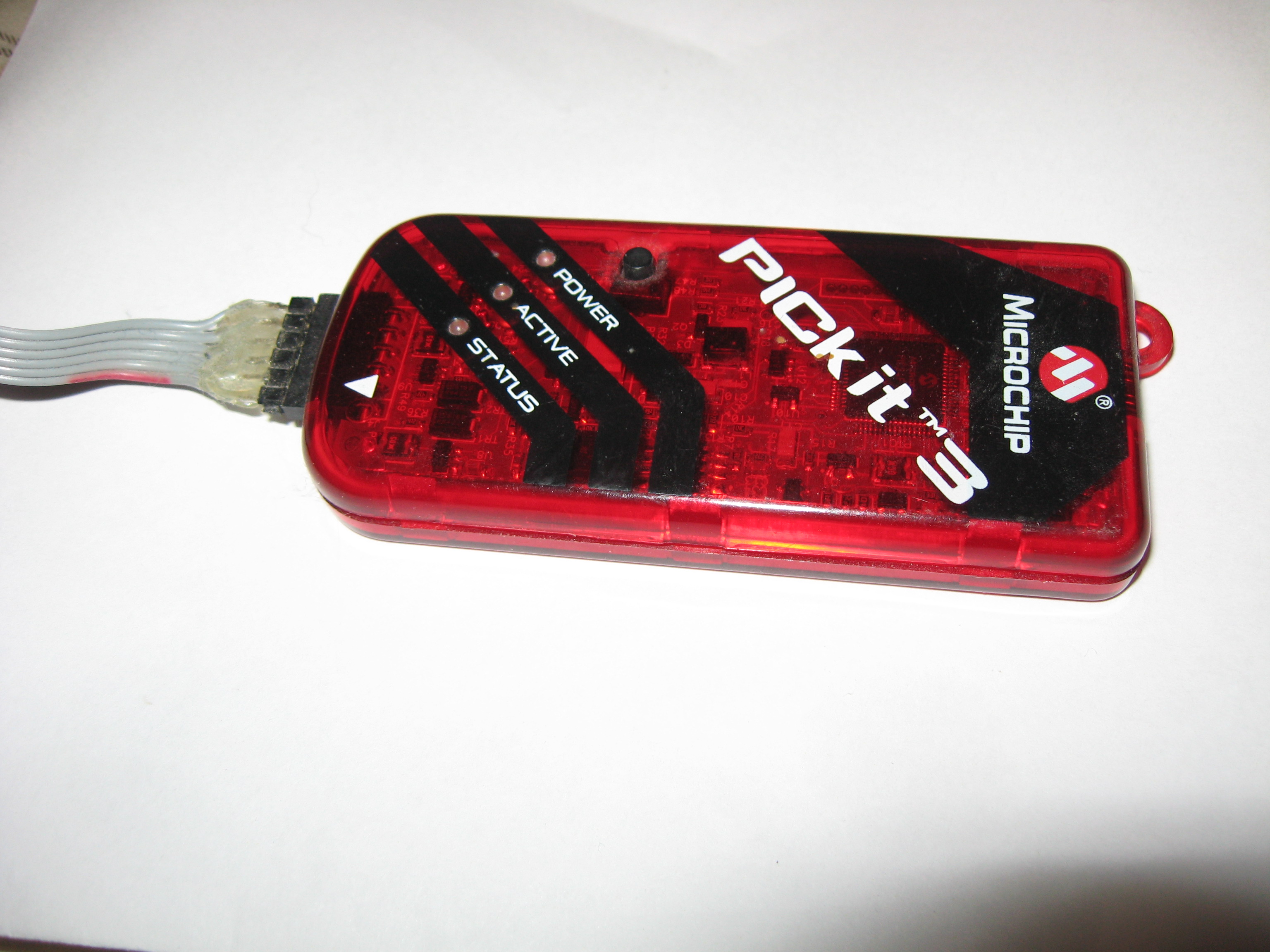

PICkit programmer.

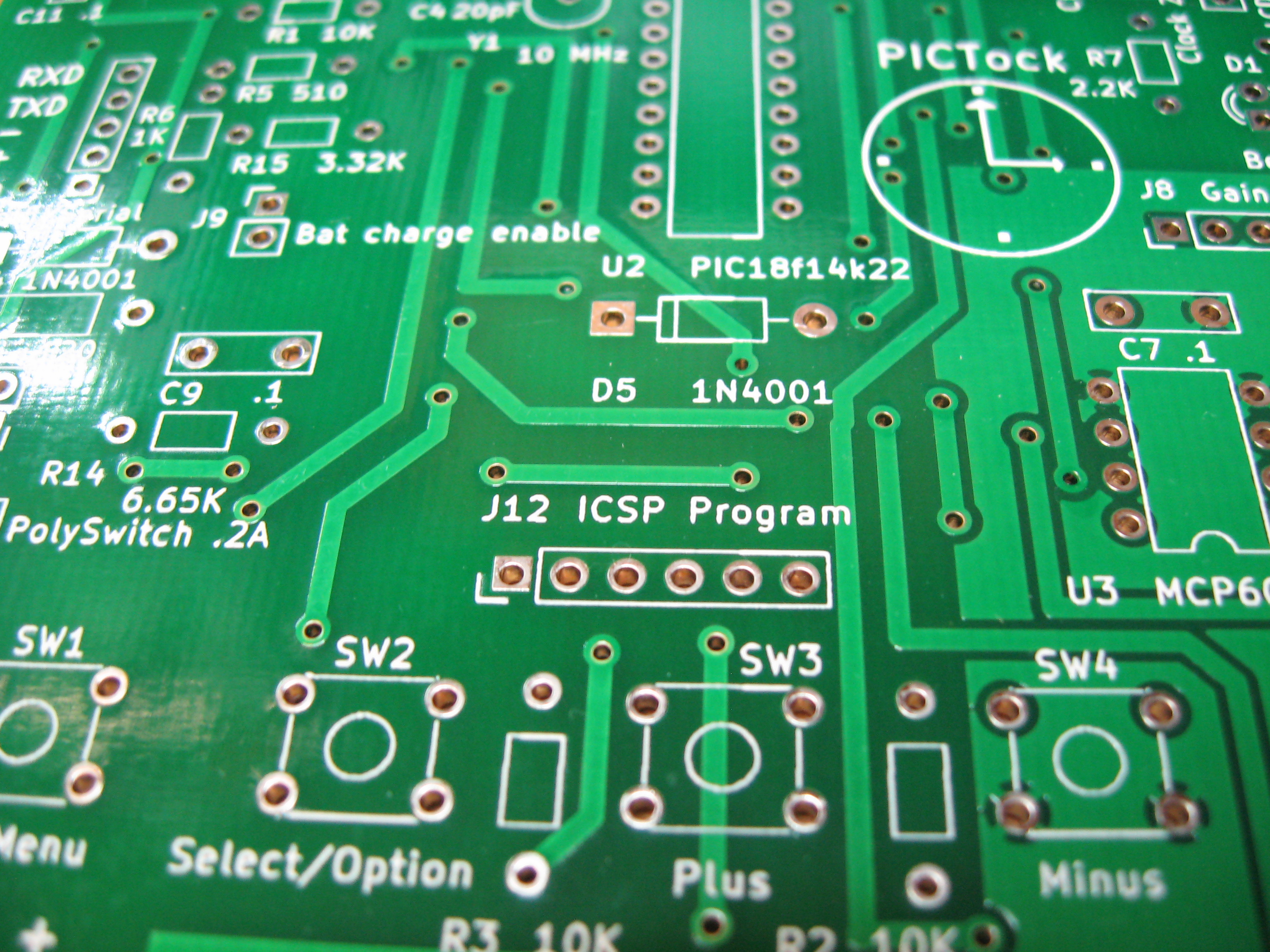

J12 ICSP header.

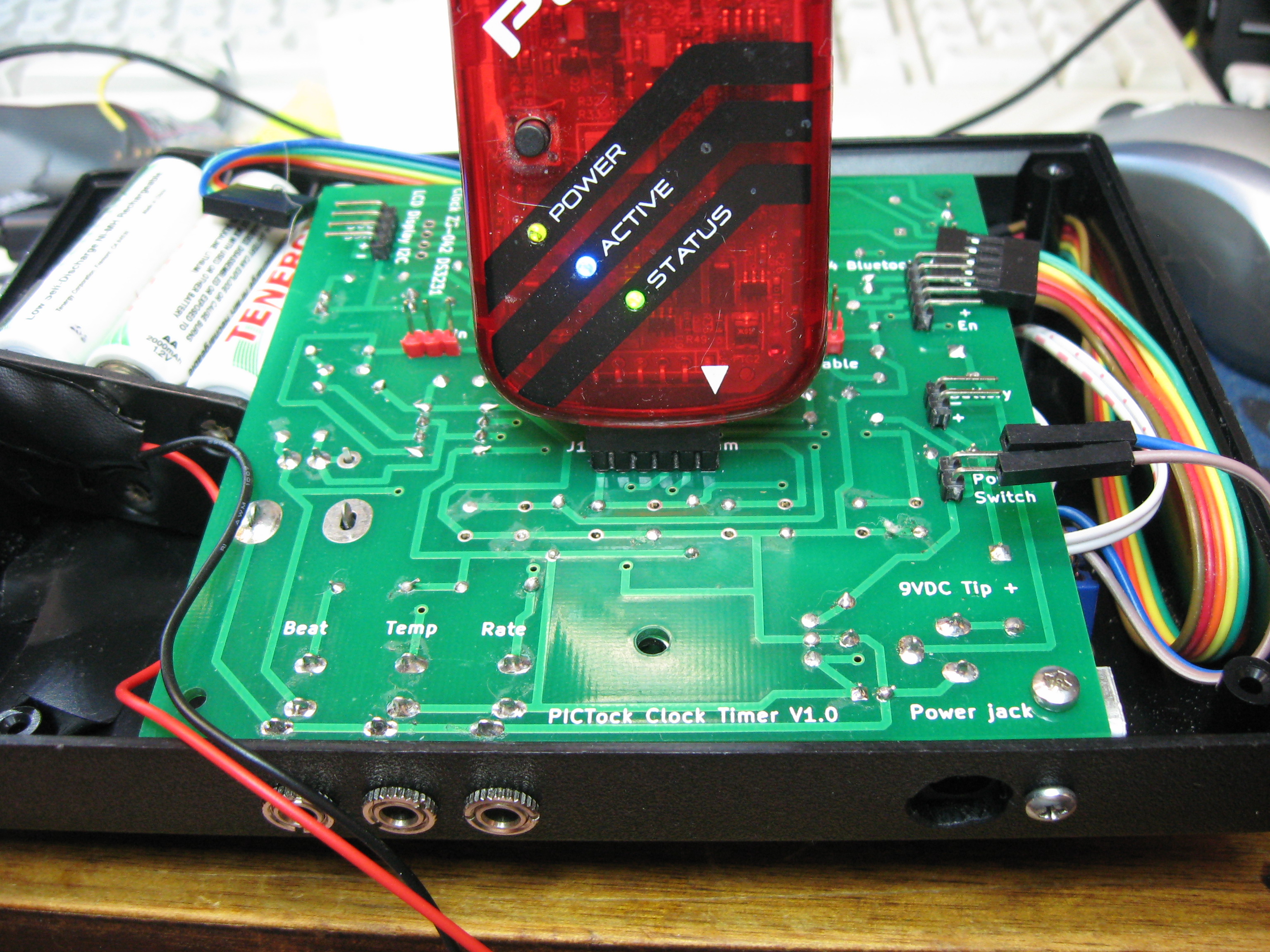

PICkit connected to J12.

Programming using the serial port boot loader.



Download ProgrammingBL.txt.

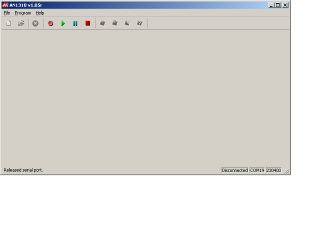

Install and run the AN310 boot loader program.

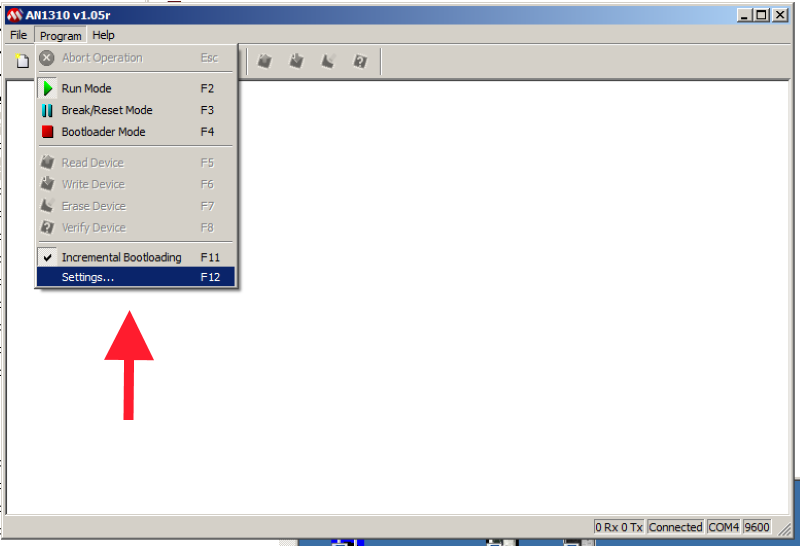

Select settings from the program menu..

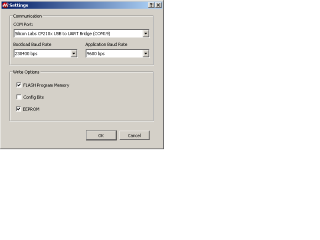

Select COM port and baud rate in Settings.

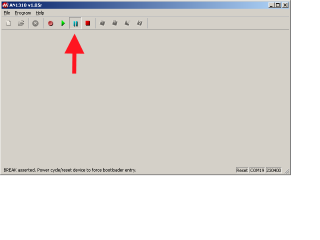

Press the break button to prepare for boot loading.

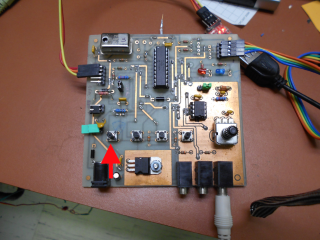

Hold set. Power up timer.

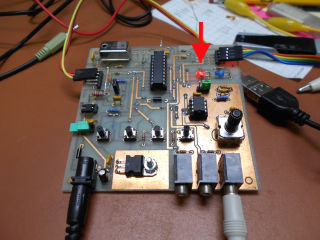

LED 1 should be on. LCD blank.

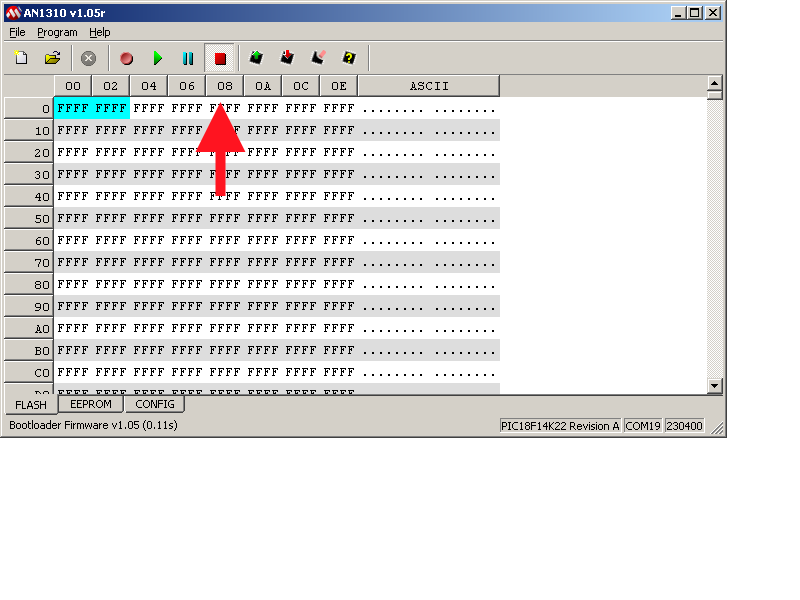

Press boot loader mode to start the boot loader.

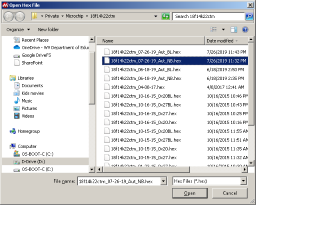

Select the file to program.

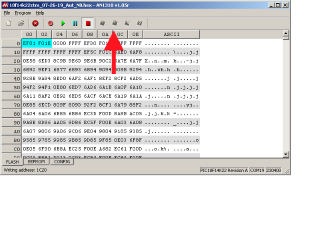

Press write device to start programming.

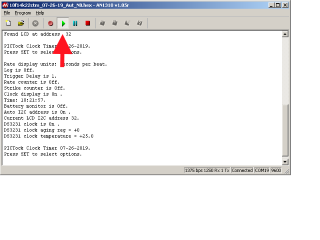

Press run to re-start with the new firmware.
